Basketball Court Construction in the UAE
Basketball court construction covers two very different jobs — an indoor sprung wooden floor in a school sports hall, and an outdoor acrylic court that has to survive a Dubai August. Raymond Sport builds both, to FIBA dimensions and EN 14904 performance criteria, across Dubai, Abu Dhabi and the wider UAE. Courts, hoops, lighting and line marking under one contract — from a company building sports facilities here since 1987.
Turnkey Basketball Court Construction, Start to Finish
Most suppliers do the floor or the hoops. We do the court. Nine stages, one contract, and a specification that accounts for the ring system before the floor build-up is fixed — not after.
| Stage | Scope item | Detail |
|---|---|---|
| Site Survey & Feasibility | Levels, drainage and access. For indoor courts, clear height and column positions dictate what is actually buildable — we establish that before anything is designed. | |
| Design & Specification | Court size, surface system, performance class, colour scheme, hoop system and lighting — issued as drawings and a written schedule, not a one-line quotation. | |
| Approvals Support | Material submittals, method statements and compliance documentation prepared for consultant and authority review. | |
| Critical Stage Base or Sub-Floor |
Reinforced concrete or asphalt base for outdoor courts; levelled sub-floor and moisture management for indoor sprung systems. Timber floors fail from below, and no surface system can correct a sub-floor that was never controlled for moisture. | |
| Surface Installation | Sprung maple, modular tile, acrylic or PU — installed to manufacturer and EN 14904 requirements. | |
| Line Marking | FIBA-compliant marking including three-point line, key and centre circle, with multi-sport overmarking where the hall is shared. | |
| Hoops & Backboards | Ceiling-mounted, wall-mounted, in-ground or portable systems, with breakaway rims and ring height set at 3.05m from the finished floor. | |
| Lighting | LED court lighting designed, installed and commissioned, with lux and uniformity measured on site and reported. | |
| Handover & Warranty | Snag list closed, as-built documentation, maintenance schedule and full warranty pack issued at handover. |
Single point of responsibility. One contract, one team, one company accountable — from sub-floor to final ring.
Basketball Court Dimensions and FIBA Standards
A full-size FIBA basketball court measures 28m long by 15m wide. Ring height is 3.05m — the one dimension that is identical at every level of the game, everywhere in the world.
28 × 15 m
FIBA full court
playing area
3.05 m
Ring height
all levels of play
6.75 m
Three-point line
FIBA
| Element | Typical specification |
|---|---|
| Court size (FIBA) | 28m × 15m |
| Court size (NBA) | 28.65m × 15.24m |
| Ring height | 3.05m from the finished floor |
| Three-point line (FIBA) | 6.75m from the basket centre, 6.60m in the corners |
| Free-throw line | 5.80m from the baseline |
| Restricted area (key) | Rectangular, 4.9m × 5.8m |
| Backboard | 1.80m wide × 1.05m high |
| Run-off | 2m clear recommended around the playing area |
| Indoor clear height | Confirm the minimum for your level of play — competition requires more than recreational |
| Surface performance | EN 14904 for indoor floors; FIBA approval levels for competition venues |
Compliance note. Confirm all dimensions and clearances against current FIBA rules and the requirements of the relevant national federation for your project. Raymond Sport issues a full compliance schedule with every proposal, covering dimensions, run-off, clear height, surface performance class and lighting levels.
Indoor or Outdoor? The Specification Changes Completely
This is the first decision, and it determines everything downstream — surface, standard, climate strategy, maintenance cycle and cost profile.
| Consideration | Indoor court | Outdoor court |
|---|---|---|
| Typical surface | Sprung maple hardwood or point-elastic vinyl | Acrylic over concrete, or modular polypropylene tile |
| Performance standard | EN 14904 — shock absorption, ball rebound, vertical deformation | Slip resistance and UV stability are the priorities |
| Player experience | Best available — the reference standard for competition | Harder underfoot, faster wear |
| UAE climate factor | Requires HVAC and moisture control to protect the timber | Requires UV-stable coatings and heat-tolerant detailing |
| Maintenance | Sweep, damp mop, periodic sand and re-lacquer | Wash, inspect, recoat every few years |
| Typical use | Schools, sports halls, clubs, competition venues | Communities, parks, rooftops, villas, school playgrounds |
| Cost profile | Higher capital cost, longer service life | Lower capital cost, shorter recoat cycle |
The court will host competitive or school league basketball, needs to meet EN 14904 performance criteria, or sits inside an existing hall with the clear height to take it.
The court is for community and recreational play, budget is the governing constraint, or you need multiple courts across a development rather than one flagship facility.
If the court will host competitive or school league basketball, build indoor sprung wood. If it is for community and recreational play, an outdoor acrylic court delivers far more usable hours per dirham — provided it is shaded or lit for evening play. In this climate, an unshaded, unlit outdoor court is unusable for much of the day for much of the year, and that is a specification problem, not a budget one.
Basketball Court Surfaces We Build
Four surface systems and a refurbishment route. We build indoor and outdoor, so the recommendation is not shaped by what we happen to sell.
Indoor
Competition Standard
Sprung Maple Hardwood
The reference surface for competitive basketball. Area-elastic system engineered to EN 14904 for shock absorption, ball rebound and vertical deformation. Specified for school sports halls, clubs and competition venues. Requires a controlled indoor environment.
Enquire
Indoor
Low Maintenance
Point-Elastic Vinyl
Roll or sheet vinyl over a resilient backing. Consistent performance, easier to maintain than timber and more forgiving of humidity — a practical indoor alternative where a sprung timber floor is not viable.
Enquire
Outdoor
UAE Standard

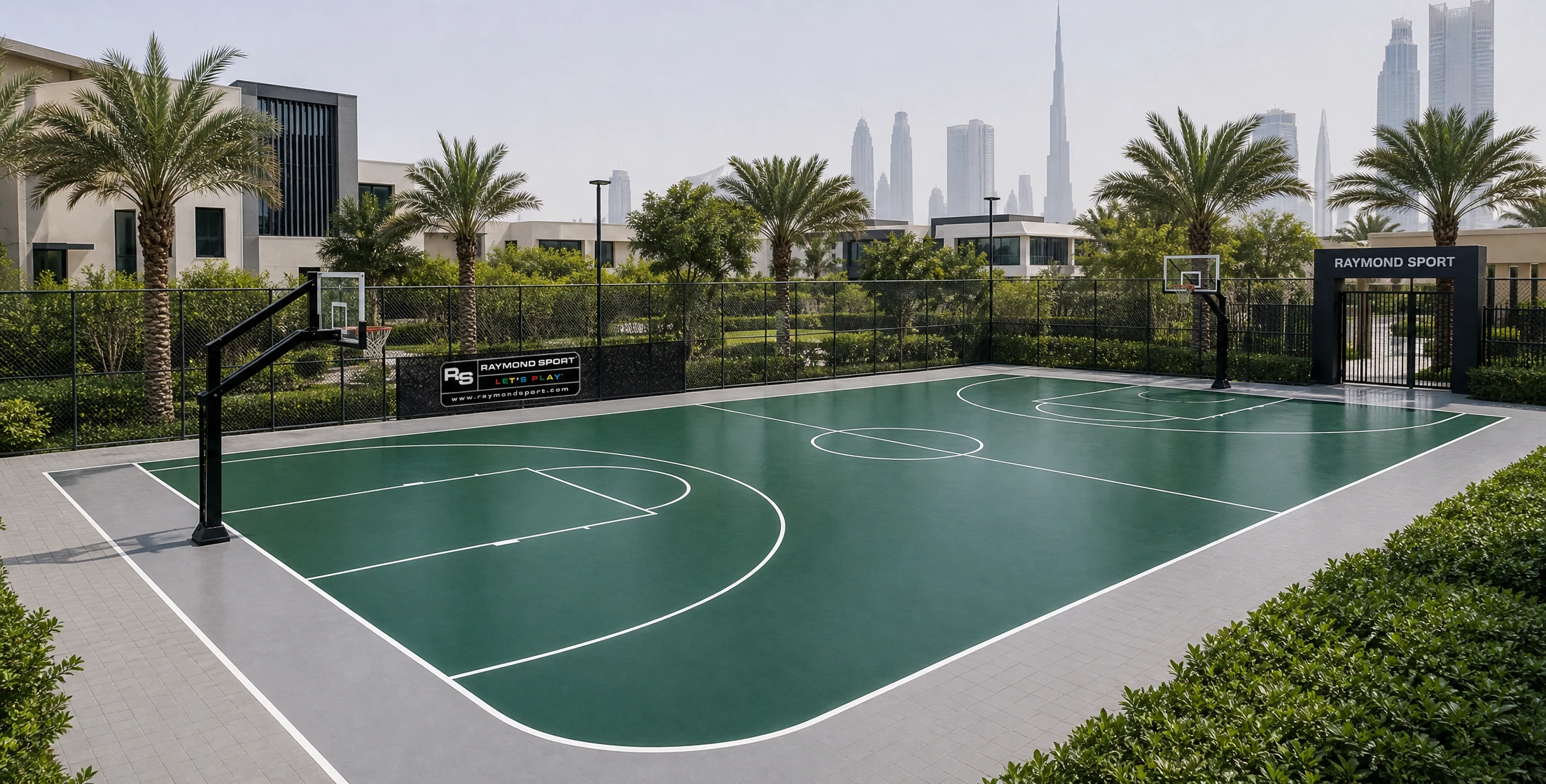

Acrylic Hard Court
The standard outdoor system in the UAE. Multi-layer acrylic over reinforced concrete or asphalt, available in cushioned build-ups and full colour schemes. Durable, UV-stable and low maintenance.
Enquire
Outdoor
Fast Install

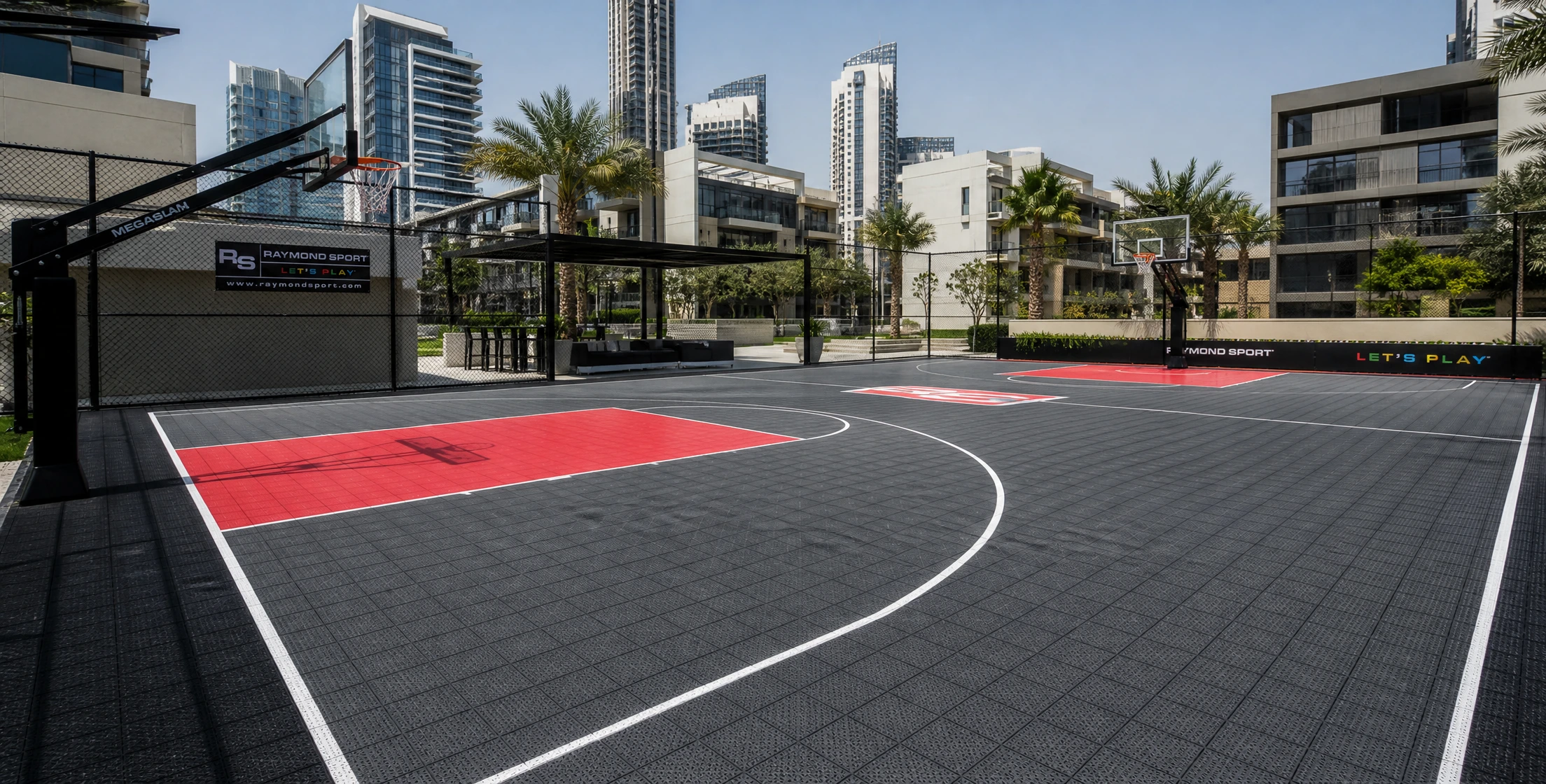

Modular Polypropylene Tile
Interlocking tiles laid over a prepared base. Fast to install, forgiving of minor base movement, with excellent drainage and panels that can be replaced individually rather than resurfacing the whole court. Popular for community courts and multi-sport areas.
Enquire
Indoor & Outdoor
Existing Courts
Resurfacing & Refurbishment
Existing outdoor courts get crack repair, falls correction and a full recoat. Existing indoor timber floors get sanding, re-marking and re-lacquering. Both cost a fraction of replacement — and in UAE conditions most courts need attention long before the base or sub-floor fails.
Book a Court AssessmentHoops, Backboards and Court Equipment
The floor is only half a basketball court. We specify and install the ring system alongside the surface, so the fixings, overhang and finished ring height are coordinated from design stage.
Ceiling-Mounted
Electrically or manually hoisted. The standard for sports halls where floor space is shared with other sports.
Wall-Mounted
Fixed or folding, for halls with suitable structure and limited ceiling access.
In-Ground
Permanent outdoor installations with correct overhang and foundation design for wind and impact loading.
Portable
Counterweighted units for flexible and multi-use spaces, and for venues that reconfigure between events.
Backboards
Tempered glass, acrylic or steel
Sized to specification — 1.80m × 1.05m for full-size play. Glass for competition and premium venues, steel for high-abuse outdoor sites.
Rings & Nets
Breakaway rims
Breakaway rims for competition and school use, supplied with net systems. They protect both the player and the backboard.
Ring height of 3.05m is non-negotiable. Overhang, foundation depth and structural fixings are where most installations fail — almost always because the hoop system was bought separately from the floor and nobody checked how the two would meet. We coordinate both from design stage.
Basketball Court Lighting
Basketball is played looking upward. Glare control matters more here than on any other court we build — a shooter aiming at the ring should never have a luminaire in the same field of view.
| Level of play | Illuminance target | Typical application |
|---|---|---|
| Recreational / community | 200–300 lux | Outdoor community and school courts, park and compound facilities |
| Club and training | 300–500 lux | Sports halls, clubs, schools and universities |
| Competition | 500 lux and above | League and federation-affiliated venues |
| Broadcast | Per event requirement | Televised events, with flicker and colour rendering set by the broadcaster |
Luminaires positioned to avoid glare in the shooter's sightline and protected against ball strike. In shared sports halls the layout has to work for every sport marked on the floor, not just basketball.
Pole positions coordinated with the fence line, and spill light controlled where courts sit close to residential buildings — a common constraint on community and rooftop courts in Dubai.
How we design it. Lighting is designed to EN 12193 classes, modelled before installation, and measured at commissioning — lux and uniformity reported, not assumed from the datasheet. Confirm the exact requirement with the relevant federation for any court intended to host sanctioned competition.
Basketball Court Maintenance
Two surfaces, two entirely different care regimes. This is the schedule we issue at handover — follow it and the floor reaches the top of its service life.
| Interval | Indoor sprung wood | Outdoor acrylic |
|---|---|---|
| Weekly | Dust mop; check for loose fixings | Sweep debris; clear drainage |
| Monthly | Damp mop with an approved cleaner; inspect seams | Wash the surface; inspect lines and cracks |
| Annually | Full inspection; check moisture levels and fixings | Full inspection of coating, cracks and falls |
| Refurbishment Due Every 4–8 Years |
Sand, re-mark and re-lacquer | Resurface and recoat |
Humidity is the enemy
Humidity control is the single biggest factor in indoor timber floor life in this region. A hall with unreliable HVAC will cup, gap or crown a maple floor long before playing hours wear it out.
UV is the enemy
UV exposure is the equivalent factor outdoors. Colour fades, the coating chalks and the surface loses grip — usually well before the base beneath it shows any sign of failure.
Court due for refurbishment? Tell us whether it is indoor timber or outdoor acrylic and roughly how old the surface is. We will advise whether it needs a recoat, a sand and re-lacquer, or something more.
Book an AssessmentWhy Build Your Basketball Court With Raymond Sport
Indoor timber and outdoor acrylic are two different trades. Most contractors pick one and recommend it to everybody. Five reasons schools, clubs and developers across the UAE appoint us instead.
38
Years in UAE
sports construction
Trading since 1987, with courts delivered for schools, clubs and developments across Dubai and Abu Dhabi. Long enough to have sanded and recoated floors we laid ourselves — which is a different kind of experience from having installed a lot of them.
Indoor and Outdoor, One Contractor
Sprung timber halls and outdoor acrylic courts are different disciplines. We do both, so the recommendation is not shaped by what we happen to sell.
Performance-Specified
EN 14904 criteria and FIBA dimensions, documented in the submittal — not just a shade of blue.
Floor and Hoops Together
Ring height, overhang and structural fixing coordinated with the floor build-up from design stage, not discovered on site.
Dubai & Abu Dhabi Offices
Local teams, local supply chain, and local aftercare, sanding and resurfacing for the life of the court.
Trusted by leading UAE developers, government entities and hospitality groups
Basketball Court Construction: Frequently Asked Questions
The questions clients ask us most often before building or refurbishing a basketball court in the UAE.
What are the dimensions of a basketball court?
A full-size FIBA court is 28m long by 15m wide. NBA courts are slightly larger at 28.65m × 15.24m. Allow around 2m of clear run-off around the playing area, so a full court needs approximately 32m × 19m of usable space.
How high is a basketball hoop?
3.05 metres from the finished floor to the top of the ring. This is the same at every level of the game worldwide, from school courts to professional competition.
How much space do I need for a half court?
Approximately half the length of a full court plus run-off — around 15m × 15m of usable space for a comfortable half court. Villa and rooftop courts are often built smaller than regulation; Raymond Sport sets out the largest court the site will properly take.
What is the best surface for an outdoor basketball court in the UAE?
Acrylic over a reinforced concrete base, in most cases. It is UV-stable, low maintenance and can be laid in full colour schemes. Modular polypropylene tile is a good alternative where drainage or base movement is a concern.
What is EN 14904?
The European standard for indoor sports floor surfaces. It sets performance criteria for shock absorption, ball rebound, vertical deformation and slip resistance — the measurements that determine whether a floor actually plays like a basketball court rather than just looking like one.
Can you resurface an existing basketball court?
Yes. Outdoor courts get crack repair, falls correction and a full recoat. Indoor timber floors get sanded, re-marked and re-lacquered. Both cost far less than replacement and are usually the right answer if the base or sub-floor is sound.
Do you supply the hoops as well as the court?
Yes — ceiling-mounted, wall-mounted, in-ground and portable systems, with backboards and breakaway rims. Coordinating the hoop system with the floor build-up at design stage avoids the fixing and overhang problems that appear when they are bought separately.
Do you build basketball courts outside the UAE?
Yes. We deliver across the GCC, including Saudi Arabia, Qatar, Oman, Bahrain and Kuwait.
Still have a question about your court? Tell us whether it is indoor or outdoor and roughly what space you have. Our team will come back with a surface specification and a programme.
